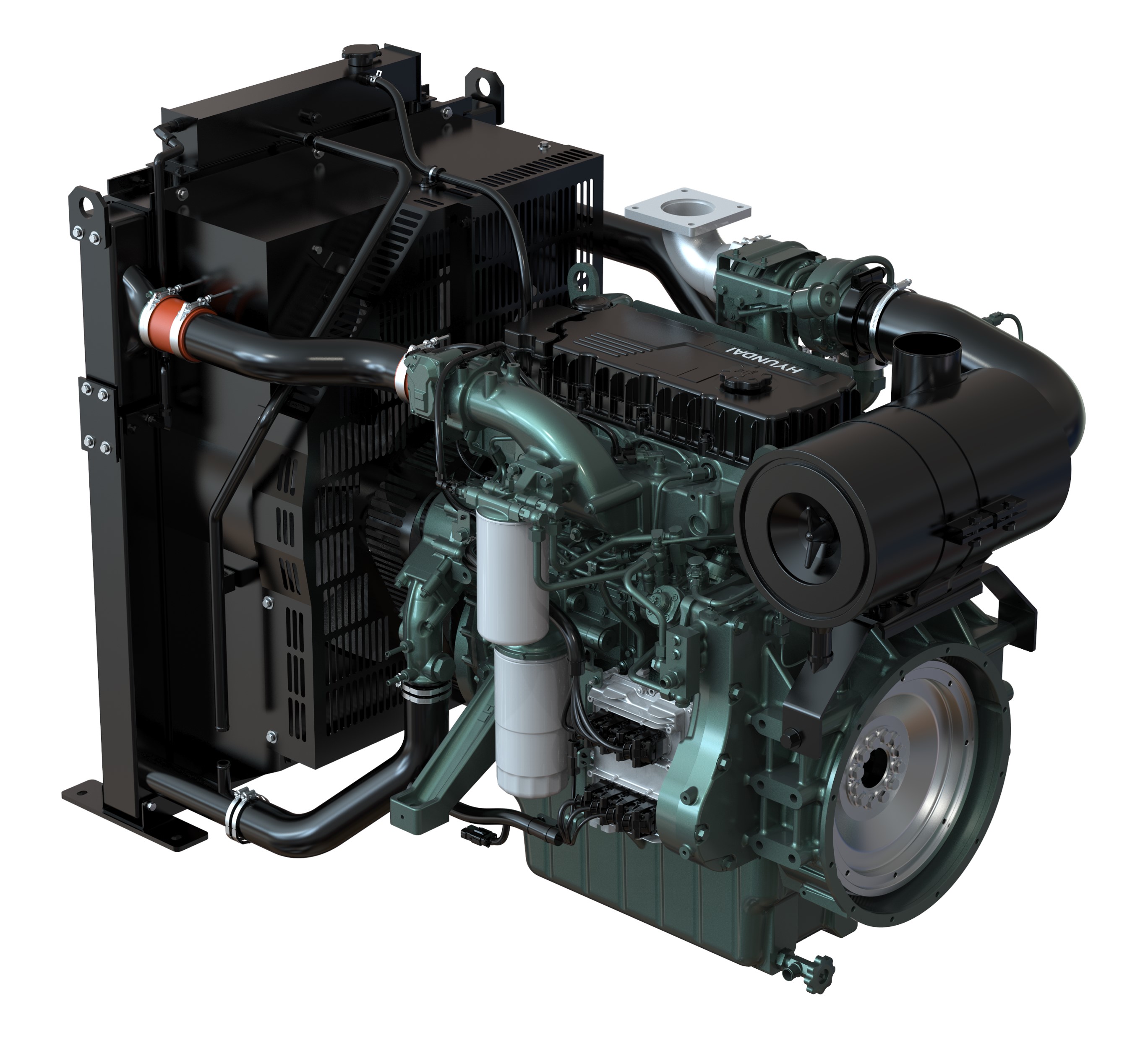

DX05 (DP054CBK)

EPA TIER 3

  • Cylinder

    L4

  • Displacement

    5.0 ℓ

  • Maximum Rating

    197 kWm

  • Emissions

    EPA TIER 3

Specifications
model DX05 (DP054CBK)
Cylinder L4
Displacement 5.0 ℓ
Maximum Rating 197 kWm
Minimum Rating 163 kWm
Aspiration Turbo Charger & Inter Cooler
Bore x Stroke 110 x 132 mm
kWm @ rpm 50Hz Standby 179 @ 1,500
kWm @ rpm 50Hz Prime 163 @ 1,500
kWm @ rpm 60Hz Standby 197 @ 1,800
kWm @ rpm 60Hz Prime 179 @ 1,800
Dimension (L × W × H) 1,668 x 882 x 1,228 mm
Dry Weight 600 kg (w/o ATS)
Emissions EPA TIER 3
