4V222C

EPA Tier 3

  • Cylinder

    V12

  • Displacement

    21.9 ℓ

  • Power Range

    596-908 kW

  • Speed Range

    1,800-2,300 rpm

  • Emissions

    IMO Tier II/III, EPA Tier 3

Overview

  • 4V222C

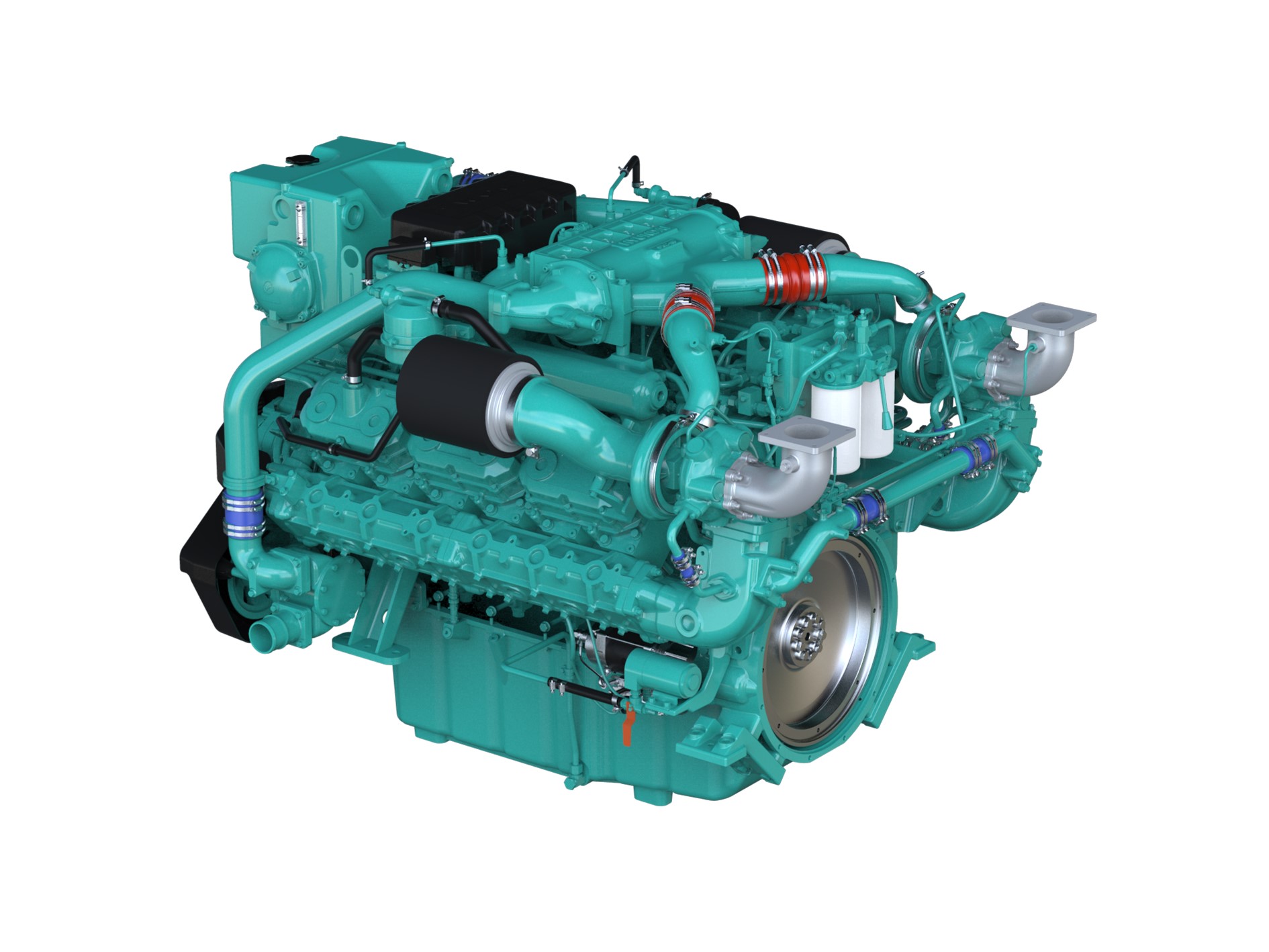

    A 22 liter-class, IMO Tier II/III V-type engine (maximum output: 720-1,235 PS) typically mounted on passenger/fishing boats and boats for fishing excursions.

  • High performance solution

    - Advanced Fuel Injection System with common Rail
    - Compliance with emission regulation (Satisfy IMO Tier II/III, EPA Tier 3)
    - SCR (Selective Catalytic Reduction) technology is used for IMO Tier III
    - Increased durability of key components
    - Decrease smoke level

  • Convenience / Maintainability / Stability

    - Application of Auto Tensioner
    - Application of Turning Device
    - Application of Safety Guards
    - Application of Electrical oil drain pump
    - Application of CCV type for improving engine room cleanliness

  • Economical solution

    - Maintaining engine power node of mechanical engine and decreasing fuel consumption to average 5% by downsizing
    - Increased oil &filter replacement cycle (250hr → 500hr)

  • Provide extended warranty program

    - Maximum 3 years warranty provided through extended warranty option

Specifications
model 4V222C
Cylinder V12
Displacement 21.9 ℓ
Power Range 596-908 kW
Speed Range 1,800-2,300 rpm
Aspiration Turbo Charger & Inter Cooler
Bore x Stroke 128 x 142 mm
kW(PS) @ rpm Continuous Duty 596(810) @ 1,800
kW(PS) @ rpm Heavy Duty 736(1,000) @ 1,800
kW(PS) @ rpm Medium Duty 809(1,100) @ 2,100
kW(PS) @ rpm Light Duty 908(1,235) @ 2,300
Dimension (L × W × H) 1,914 x 1,323 x 1,346 mm
Dry Weight 2,020 kg
Emissions IMO Tier II/III, EPA Tier 3
