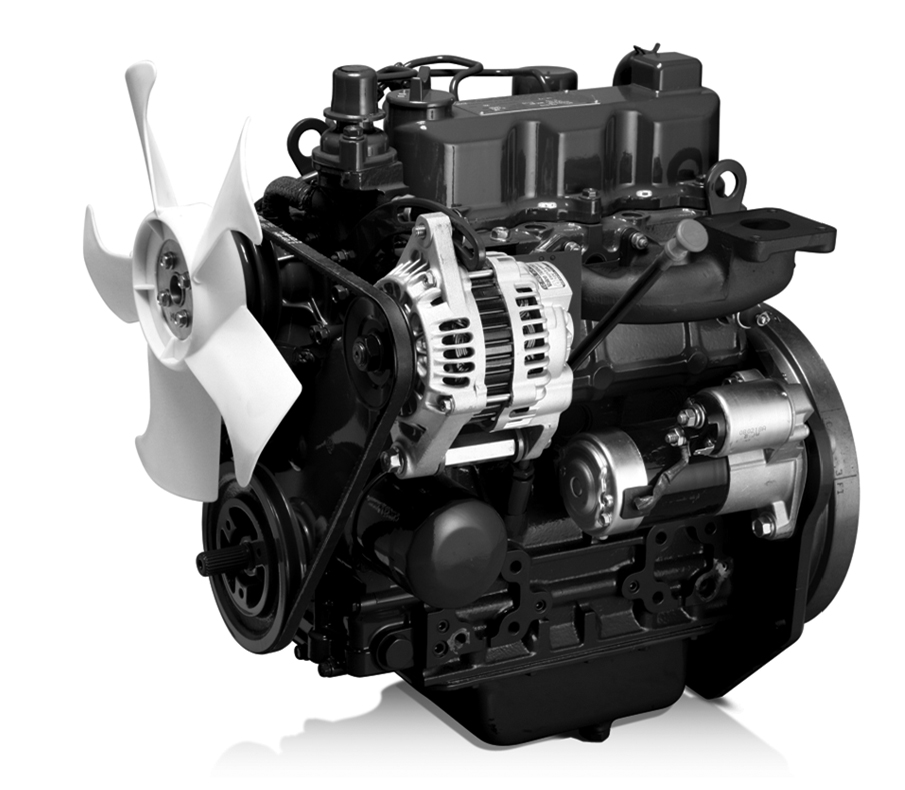

SU103
Tier 4 Final / Stage V
-
Cylinder
L3
-
Displacement
1.0 ℓ
-
Max. Power kW(HP) @ rpm
18(24) @ 3,000
-
Max. Torque Nm(lb-ft) @ rpm
61(45) @ 2,300
Specifications
| model | SU103 |
|---|---|
| Cylinder | L3 |
| Displacement | 1.0 ℓ |
| Max. Power kW(HP) @ rpm | 18(24) @ 3,000 |
| Max. Torque Nm(lb-ft) @ rpm | 61(45) @ 2,300 |
| Aspiration | Natural Aspirated |
| Bore x Stroke | 75 x 76 mm |
| Dimension (L × W × H) | 515 × 485 × 544 mm |
| Dry Weight | 101 kg |
| Emissions | Tier 4 Final / Stage V |
Compare
Products
Products
| model |
|---|
| Cylinder |
| Displacement |
| Max. Power kW(HP) @ rpm |
| Max. Torque Nm(lb-ft) @ rpm |
| Aspiration |
| Bore x Stroke |
| Dimension (L × W × H) |
| Dry Weight |
| Emissions |
| SU103 |
|---|
| L3 |
| 1.0 ℓ |
| 18(24) @ 3,000 |
| 61(45) @ 2,300 |
| Natural Aspirated |
| 75 x 76 mm |
| 515 × 485 × 544 mm |
| 101 kg |
| Tier 4 Final / Stage V |
