DM02

Tier 4 Final / Stage V

Compare
  • Cylinder

    L4

  • Displacement

    2.4 ℓ

  • Maximum Rating

    55 kWm

Home Products Generator Diesel DM02
Overview
  • DM02

    A small (2.4 liter) engine (maximum output: 55 kWm) that meets the requirements of the EU’s Stage V emission standards. It is mostly mounted on small construction machinery, forklift, and farming machinery.

  • Compact Engine

    Our compact engines are designed to be mounted on a wide variety of small-sized equipment used in industries such as loader, excavator, forklift, tractor or portable power devices. We put customers’ best interests first, will strive to keep reducing carbon emission even further, and improve our technological capabilities.

  • Economical Solution

    Our compact engines are designed to meet customers' expectation about reliability, quality, efficiency, and performance. Customers’ total cost of ownership is reduced throughout the lifespan of the engines thanks to their components that do not require maintenance, extended parts replacement interval, and less fuel consumption. Accordingly, the engine-related payback period is relatively short.

  • High Performance Solution

    Our compact engines produce a high output and a high/low torque and keep working well even in harsh conditions and difficult work environment.

  • Convenient Solution

    Our compact engines are used in a variety of equipment, as they make strong power in small deflection. They are designed to demonstrate their optimal performance with their maximum capability taken into account. They can be mounted on almost all types of equipment thanks to their compact size, flexible post-treatment system, and handiness in mounting.

Specifications
Classification DM02
Cylinder L4
Displacement 2.4 ℓ
Maximum Rating 55 kWm
Minimum Rating 43 kWm
Aspiration Turbo Charger & Inter Cooler
Bore x Stroke 90 x 94 mm
kWm @ rpm 50Hz Standby 50 @ 1,500
kWm @ rpm 50Hz Prime 43 @ 1,500
kWm @ rpm 60Hz Standby 55 @ 1,800
kWm @ rpm 60Hz Prime 45 @ 1,800
Dimension (L × W × H) 742 x 576 x 706 mm
Dry Weight 233 kg
Emissions Tier 4 Final / Stage V
Compare
Products
Classification
Cylinder
Displacement
Maximum Rating
Minimum Rating
Aspiration
Bore x Stroke
kWm @ rpm 50Hz Standby
kWm @ rpm 50Hz Prime
kWm @ rpm 60Hz Standby
kWm @ rpm 60Hz Prime
Dimension (L × W × H)
Dry Weight
Emissions

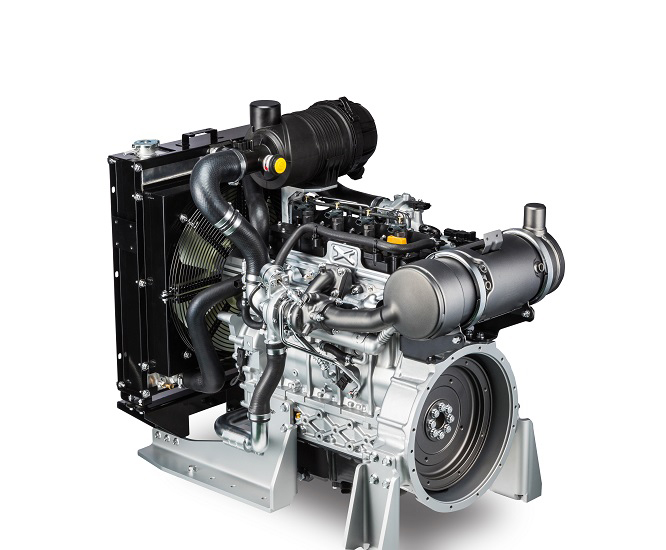

It's an image of DM02
DM02
L4
2.4 ℓ
55 kWm
43 kWm
Turbo Charger & Inter Cooler
90 x 94 mm
50 @ 1,500
43 @ 1,500
55 @ 1,800
45 @ 1,800
742 x 576 x 706 mm
233 kg
Tier 4 Final / Stage V
