DP126LA

Non-Tier

  • Cylinder

    L6

  • Displacement

    11.1 ℓ

  • Maximum Rating

    375 kWm

  • Emissions

    Non-Tier

Overview

  • DP126LA

    An 11-liter engine (maximum output: 375 kWm) for an inline, 6-cylinder, turbo/intercooler generator

  • DP Engine

    Our engines are mounted on emergency/commercial generators and are recognized for their high output and durability, so they are supplied all over the world. They are characterized by convenience in maintenance, high performance, and high fuel efficiency, meeting customers’ requirements.


  • Handiness of maintenance and high performance

    User convenience - high fuel efficiency and being easy to install

Specifications
model DP126LA
Cylinder L6
Displacement 11.1 ℓ
Maximum Rating 375 kWm
Minimum Rating 293 kWm
Aspiration Turbo Charger & Inter Cooler
Bore x Stroke 123 x 155 mm
kWm @ rpm 50Hz Standby 321 @1,500
kWm @ rpm 50Hz Prime 293 @ 1,500
kWm @ rpm 60Hz Standby 375 @ 1,800
kWm @ rpm 60Hz Prime 346 @ 1,800
Dimension (L × W × H) 1,404 x 1,096 x 1,295 mm
Dry Weight 1,008 kg
Emissions Non-Tier
Compare
Products
model
Cylinder
Displacement
Maximum Rating
Minimum Rating
Aspiration
Bore x Stroke
kWm @ rpm 50Hz Standby
kWm @ rpm 50Hz Prime
kWm @ rpm 60Hz Standby
kWm @ rpm 60Hz Prime
Dimension (L × W × H)
Dry Weight
Emissions

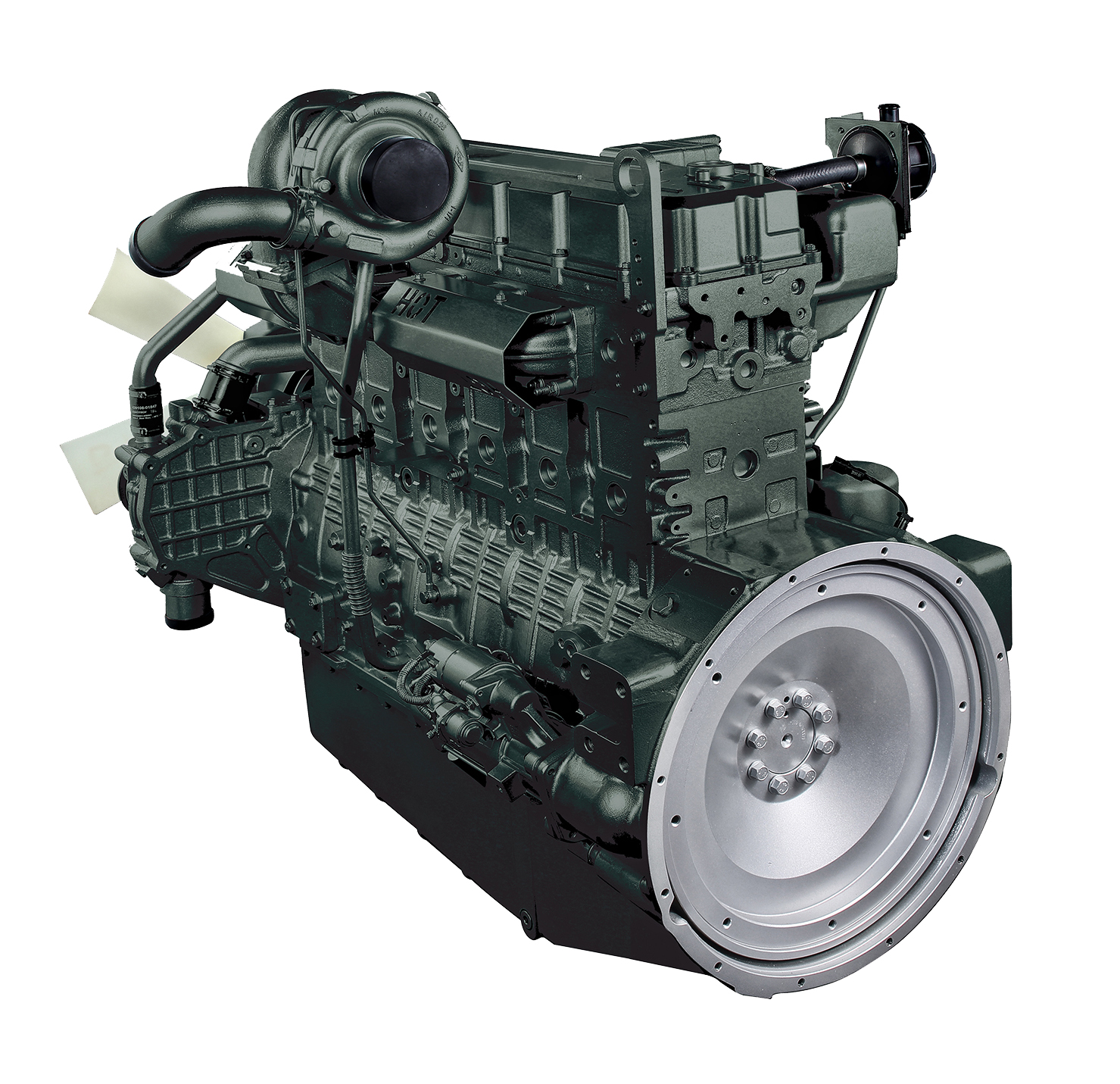

Diesel Generator DP126LA Image
