GL11K

Euro 5

  • Cylinder

    L6

  • Displacement

    11.1 ℓ

  • Max. Power

    340 PS

  • Max. Torque

    1,373 Nm

  • Emissions

    Euro 5

Overview

  • GL11K (Euro 5)

    An 11 liter-class Euro 5 CNG engine (maximum output: 340 PS) equipped with an oxidation catalyst and SCR. It is mounted on city buses.

  • Overview

    Euro 5 lineup featuring high output and good fuel efficiency/durability

Specifications
model GL11K
Cylinder L6
Displacement 11.1 ℓ
Max. Power 340 PS
Max. Torque 1,373 Nm
Aspiration Turbo Charger & Inter Cooler
Bore x Stroke 123 x 155 mm
Max. Power kW(PS) @ rpm 250(340) @ 2,100
Max. Torque Nm(kg.m) @ rpm 1,373(140) @ 1,300
Dimension (L × W × H) 1,372 x 834 x 1,064 mm
Dry Weight 910 kg
Emissions Euro 5
Compare
Products
model
Cylinder
Displacement
Max. Power
Max. Torque
Aspiration
Bore x Stroke
Max. Power kW(PS) @ rpm
Max. Torque Nm(kg.m) @ rpm
Dimension (L × W × H)
Dry Weight
Emissions

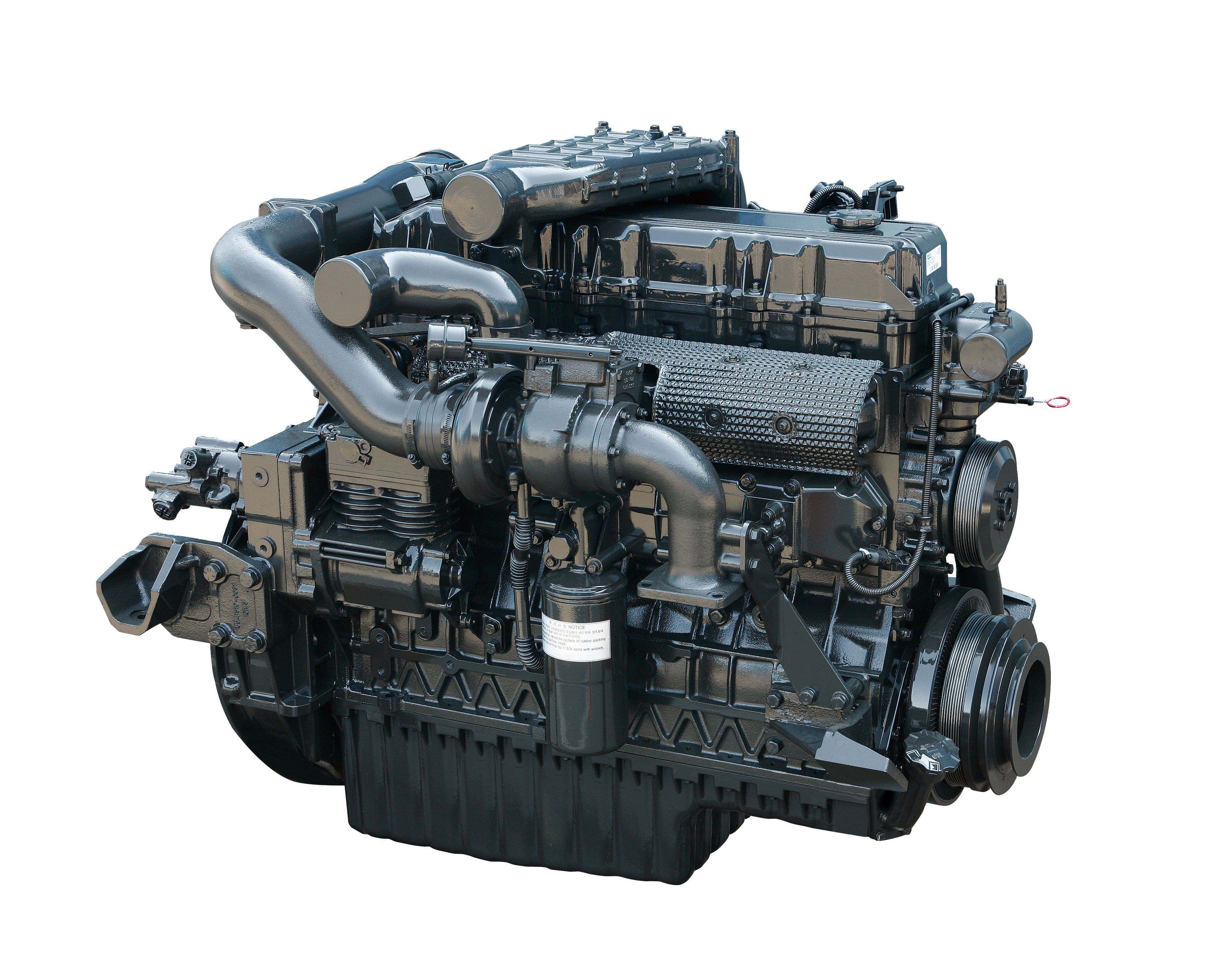

It's an image of GL11K
GL11K
L6
11.1 ℓ
340 PS
1,373 Nm
Turbo Charger & Inter Cooler
123 x 155 mm
250(340) @ 2,100
1,373(140) @ 1,300
1,372 x 834 x 1,064 mm
910 kg
Euro 5
